Power Output into 8 Ohm | 80W Both Channels Driven, Nominal (THD+N <0.1%) |
Power Output into 4 Ohm | 130W Both Channels Driven, Nominal (THD+N <0.1%) |
Inputs (Digital) | Digital 1 (D1) – Coax SPDIF (up to 192kHz/24bit) |
| Digital 2 (D2) – Optical SPDIF (max. 96kHz/24bit) |
| Digital 3 (TV) – Optical SPDIF (max. 96kHz/24bit) |
| Digital 4 (CD) – Coax SPDIF (up to 192kHz/24bit) |
| Digital 5 (Bluetooth) – Bluetooth (48kHz/16bit) |
Inputs (Analogue) | A1 – No signal sense |
| A2 – With signal sense & used for AV Mode |
| MM (Phono) – RIAA (equalised) |

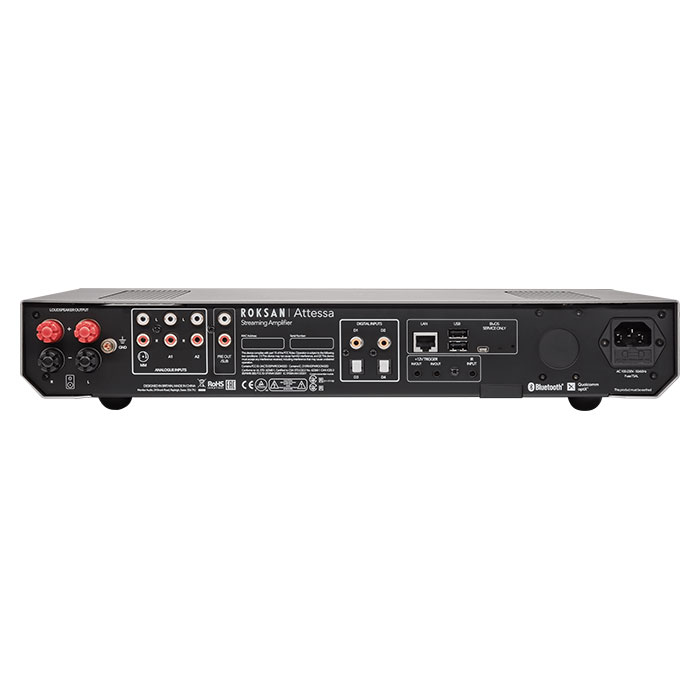

Outputs | 1x pair Speaker binding posts (L&R) |
| 1x pair of RCA Analogue (Pre-out/SUB) |
| 3.5mm Stereo mini-jack headphone socket - 7.5Vrms drive suitable for all headphone types including high-impedance |
Other | IEC mains power socket (3 pin)/Fuse holder |
| 3.5mm mini-Jack – 12v trigger Input (On / Standby) |
| IR wired input 3.5mm jack |
Construction | Formed Plated steel and bespoke machined anodised aluminium front panel |
Primary Interface (on unit) | Dynamic Control Dial (with haptic feedback) to control volume and inputs |
Secondary Interface (on unit) | Standby, Backward, Play/Pause, Forward |

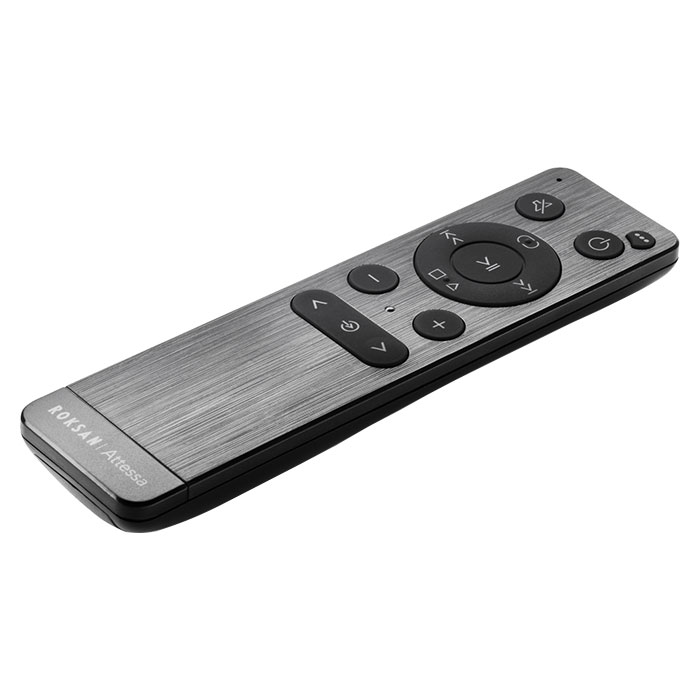

Other Interface | IR remote |
| Bluetooth |
| A2DP Audio profile / Codecs: SBC, aptX & AAC Bluetooth Range: 15m (typical) |
Digital Coax Input | up to 24bit/192kHz PCM |
Digital Optical Input | up to 24bit/96kHz PCM |
MaestroUnite | System Creation and Control |
| Advanced System Setting |
| Over the Air Updates via Wi-Fi |
Mains Transformer Rating | 400VA |
Dimensions (Including Encoder and Connections (W x H x D)) | 432 x 76 x 373 mm |
Dimensions (Excluding Encoder and Connections (W x H x D)) | 432 x 76 x 346 mm |
Weight | 10.48 kg (23 lb) |
Audio Formats | MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS |
Hi-Resolution Audio Formats | MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only) |
Sampling Rate | Up to 24 bit / 192kHz |
Supported Operating Systems (Minimum Spec) | Windows 7 SP1, macOS 10.9 Mavericks, iOS 9.3, Android 5.0 Lollipop or above |
Supported Cloud Services | Amazon Alexa, Amazon Music, Spotify Connect, TIDAL Connect, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs |
Free Internet Radio | TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise |
Control Integrations | Crestron, Control4 (OS 3), Control4 (2.9.1), RTI, URC, Push, Lutron, ELAN, iPort |
Format Support / Sampling Rate | PCM / up to 192KHz/24bit |
