CP-IW260X

CP-IW260X
Monitor Audio
https://bmcav.com.au/web/image/product.template/1520/image_1920?unique=e1b176b
(0 review)

150W, 3-Way, Architectural In-wall Speakers

$ 1,649.00 $ 1649.0 AUD each $ 1,649.00
(Save $ -1,649.00 $)
$ 0.00 $

$ 1,649.00

    This combination does not exist.

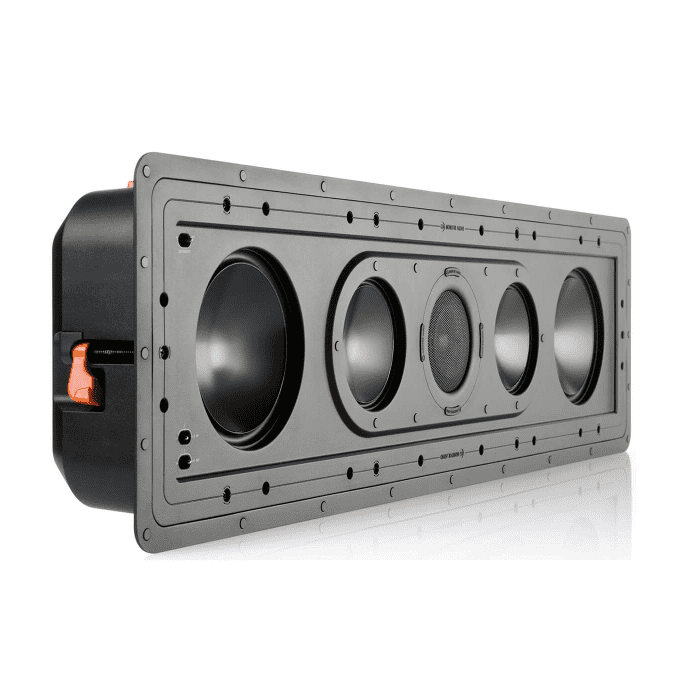

    The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.
    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    The CP-IW260X boasts Monitor Audio's renowned C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material in a dual 6.5" bass driver setup and twin 4" mid-range drivers flanking a Gold Dome tweeter, arranged in a symmetrical 'B-M-T-M-B' layout, all housed within a sturdy cast polymer cabinet.

    Note: Avoid painting the grilles of the CP-IW260X and CP-IW460X, as spare scrims are not included.

    Technology:

    • Dual 4" C-CAM mid-range drivers – featuring underhung voice coil
    • 25 mm (1") C-CAM Gold Dome tweeter

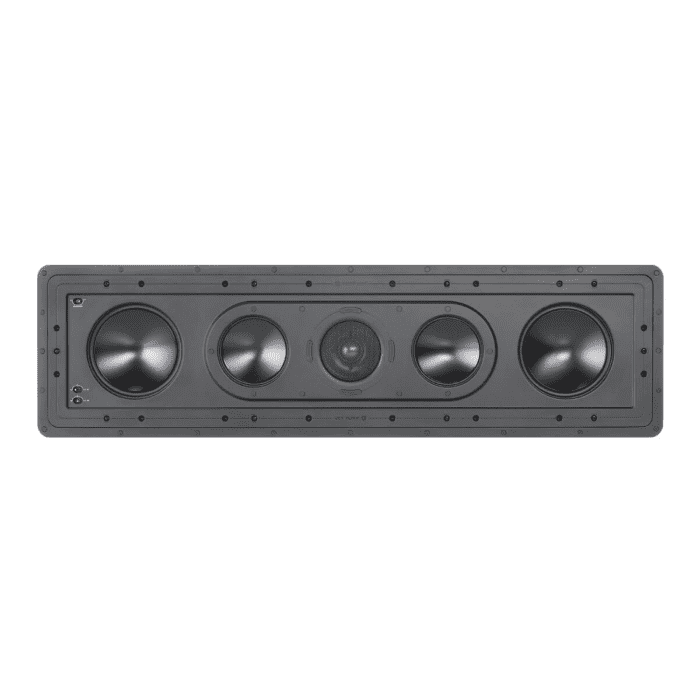

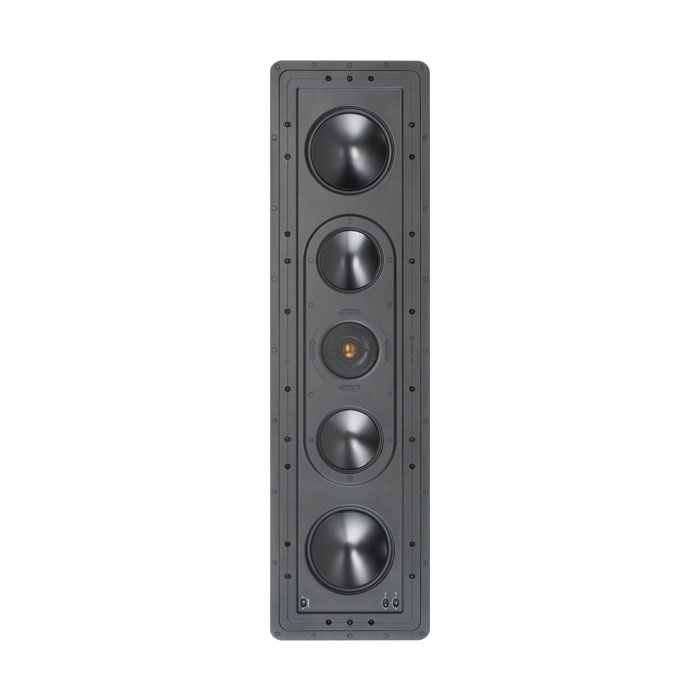

    • Portrait or landscape orientation
    • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
    • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
    • High overall efficiency and maximum SPL for powerful home theatre installations
    • High power handling
    • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
    • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

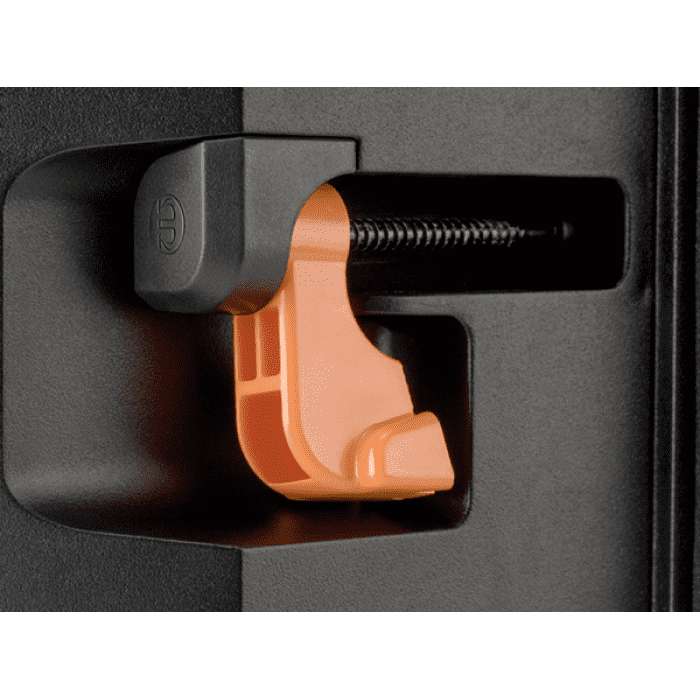

    • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
    • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing


    SpecificationDetails
    Frequency Response50 Hz – 30 kHz (-6 dB typical in-room response)
    Nominal Impedance6 ohms
    Sensitivity (1W@1M)89 dB
    Maximum SPL113.8 dBA
    Power Handling (RMS)150 W
    Recommended Amplifier Requirements60 – 150 W
    Crossover FrequencyL.F - 500 Hz @ 12 dB/Octave
    M.F - 500 Hz @ 12 dB/Octave
    H.F - 3 kHz @ 18 dB/Octave
    Drive Unit Complement2 x 6.5" C-CAM Bass drivers
    2 x 4" C-CAM Mid-range drivers
    1 x 25 mm (1") C-CAM Gold Dome tweeter
    Adjustment ControlsBoundary Compensation (On/Off)
    MF Level: +1/0/-1 (dB)
    HF Level: +1/0/-1 (dB)
    Overall Dimensions (H x W x D)907 x 257 mm (353/4 x 101/8")
    Overall Depth (Including Grille)102 mm (4")
    Cut-Out Dimensions880 x 230 mm (3421/32 x 9")
    Mounting Depth96 mm (33/4")
    Fixing Type10 x Tri-Grip Dog leg fixings
    Construction MaterialCast Polymer enclosure (RoHS2 Compliant)
    Weight11.98 kg (26 lb 6 oz)
    Pre-Construction BracketWB12 Pre-Construction Bracket (Green)
    Sold AsSingle Unit
