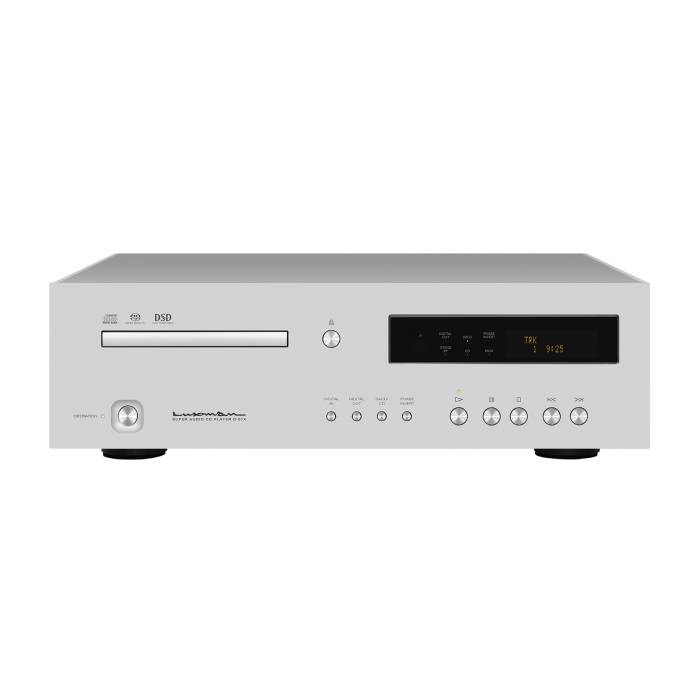

Luxman D-07X Digital Media Player
High-Resolution Digital Playback with Flagship-Inspired DAC & SACD/CD Performance
The Luxman D-07X is a refined digital media player that inherits the core technologies and sonic excellence of Luxman’s flagship D-10X, bringing exceptional high-resolution audio playback to discerning listeners. Designed to handle an extensive range of digital formats—including SACD, CD, MQA-CD, and hi-resolution PCM/DSD files—the D-07X combines robust digital circuitry with precision analogue output for a truly musical experience.
From mechanical engineering to digital signal processing, the D-07X is meticulously crafted to deliver wide dynamic range, reduced jitter, and deep musical expression across recorded media, making it a premier choice for audiophiles who want serious digital performance without compromise.
Key Features & Benefits
Flagship-Derived DAC Technology
At the heart of the D-07X sits a pair of high-performance ROHM BD34301EKV DACs in a dual-mono configuration, engineered to produce rich detail, refined texture, and nuanced spatial imaging across all playback formats.
Extensive Format Support
The D-07X supports SACD and CD playback, including MQA-CD and MQA file decoding, as well as USB audio up to PCM 768 kHz/32-bit and DSD 22.4 MHz, ensuring compatibility with today’s widest range of digital sources.
Robust Disc Transport Mechanism
The advanced LxDTM-i transport system delivers stable, accurate disc reading with minimal vibration and error, preserving musical integrity from the first note to the last.
Precision Analogue Output Stage
Featuring gold-plated RCA and Neutrik XLR balanced outputs paired with low-impedance buffering, the D-07X ensures clean, noise-free signal transmission to your amplifier for optimal sound reproduction.
High-Quality Construction & Design
From its rigid chassis to its carefully shielded internal circuitry, the D-07X is built to minimise interference and maintain signal purity, reflecting Luxman’s dedication to lasting craftsmanship and aesthetic refinement.
Performance Highlights
-
SACD / CD playback with excellent frequency response and low distortion.
-
High-resolution USB DAC supporting ultra-high PCM and DSD sample rates.
-
Balanced analogue outputs for improved noise rejection and dynamic clarity.
Advanced DAC circuitry, reproducing digital media with excellent sound quality
Following standards set by our D-10X flagship model, high-end BD34301EKV DAC chips manufactured by Rohm Co., Ltd. in dual monaural configuration lie at the core of the digital circuitry that processes various digital media from discs, such as CDs and SACDs, to the latest high resolution audio files with exceptional quality. Over a USB input from a PC, Mac, NAS for audio, etc., the D-07X supports a wide range of format encoding up to PCM768kHz/32 bit and DSD22.4MHz. Bulk Pet transfer, which equalizes transmission load, can also be selected by using our dedicated driver software. Furthermore, for the popular high-quality format MQA (MQA-CD/MQA file), which expands the field of optical discs, streaming USB, COAX, and optical. The clocking system is designed to support accurate digital signal processing and is equipped with two high-precision, low-jitter, ultra-low phase noise modules that reduce noise near the oscillation frequency to a minimum. There is also a built-in, 2-mode analog FIR filter that allows you to select your preferred sound quality when playing SACD or DSD files.
Highly robust LxDTM-i drive mechanism
The D-07X employs a left-side mechanical layout with an asymmetric configuration that realizes the shortest and ideal audio signal path and affords space for high quality analog circuitry. The disc drive section that supports CD and SACD playback is based on our original, highly robust LxDTM mechanism, which features a robust box structure that covers the entire mechanism with a side frame and top plate. Our LxDTM-i* system has evolved into an integrated structure that firmly blocks external vibration by being mounted directly onto the strong chassis side panel, achieving high precision and stable signal reading performance, comparable to our D-10X flagship model. The disc tray is made of die-cast aluminum, eliminating unnecessary vibration and resonance effects on the loader mechanism and enabling precise and smooth loading operation.
*LxDTM-i is an abbreviation for Luxman original Disc Transport Mechanism-improved, which realizes stable signal reading and mechanical integrity.
Newly developed discrete buffer circuitry
As a component that handles digital sources, high-precision signal reading by the drive mechanism and advanced digital signal processing are very important, but it goes without saying that the high performance analog output circuitry which determines the final audio quality is the most important factor in realizing that deep musical expression expected from high-end components designed by LUXMAN. The D-07X has a newly developed I/V conversion system that receives the differential outputs of the paired BD34301EKV DAC chips, operating in monaural mode, and feeds four discrete, perfectly matched amplifier modules. High-quality buffer circuitry lowers the impedance of the output signal. The unit powerfully drives any integrated amplifier or control amplifier that would be the next stage component. Out-of-audible-range filtering, which is essential for digital players, is performed in the buffer stage instead of having an independent LPF stage, enabling the reproduction of natural and smooth analog waveforms, resulting in higher clarity and more immediate sound quality.
Large-capacity power supply
The D-07X’s power transformer capacity has been increased by 50% compared to our D-06u model. Large capacity filter capacitors and independent regulator blocks have been installed for each circuit to develop a highly stable overall power supply environment traditional to LUXMAN. Again, clean and stable power has been achieved.
Discerning original technologies and construction
The D-07X is housed in a shielded chassis structure, insulating its various signal paths from interference and digital noise. The density gradient of its cast iron legs, firmly bearing the weight of the main body, protect delicate musical signals from external vibrations transmitted through the supporting surface. Internal damping countermeasures eliminate unnecessary vibrations generated within the unit itself.

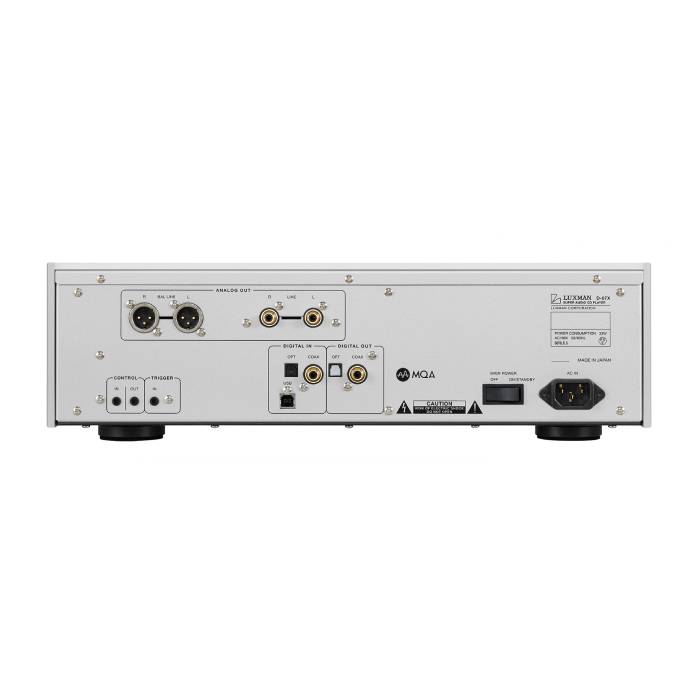

Abundant input / output terminals
The analog outputs are equipped with both 32mm pitch, gold-plated RCA terminals and newly adopted, Neutrik shielded XLR terminals. Abundant digital connectivity features a USB terminal that supports PCM/DSD input, with coaxial and optical input terminals that support PCM formats up to 192kHz/24bit, and coaxail and optical output terminals.
External interlocking terminal to expand the function
The D-07X is newly equipped with trigger input/output terminals for linking remote contrl signals between corresponding LUXMAN products.
*Connection cable is not included. Please source a 3.5mm monaural jack cable. We hope to develop control terminal support via wireless remote operation as an option in the future.
Display with excellent visibility
The FL display with excellent visibility that shines on the delicate panel of blaster white finish is equipped with a 4x zoom display mode that is easy to see even from a distance. When playing the MQA format, the decoding status (Studio: Blue, Authentic: Green, Renderer: Magenta) is displayed by a three-color LED indicator.
AC inlet and power cable
The AC inlet’s structure has been improved to support the weight of heavy power cables by reversing the mounting, suppressing any movement of the power cable while maintaining a stable grip.
