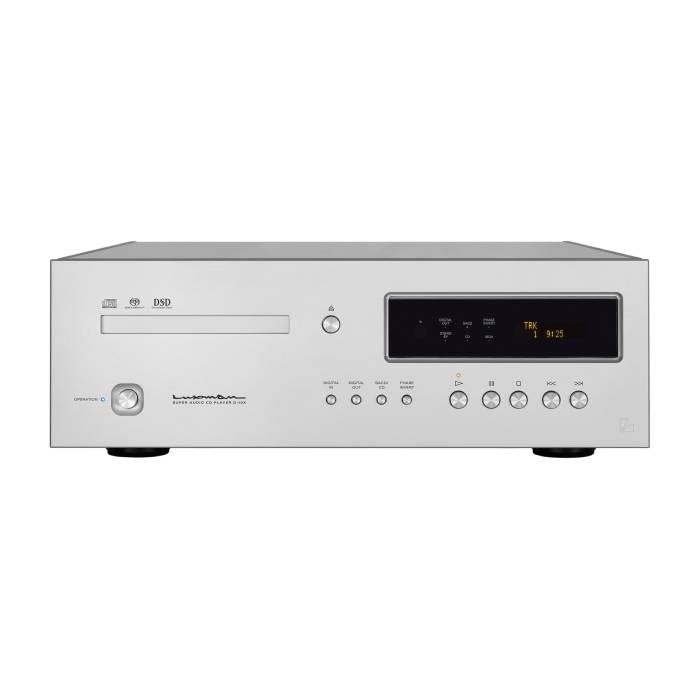

Luxman D‑10X – Flagship SACD/CD Digital Media Player & DAC
Experience the pinnacle of digital audio performance with the Luxman D-10X, the flagship SACD and CD player from Luxman’s elite digital player series. Designed for discerning audiophiles and demanding two-channel systems, the D-10X combines cutting-edge digital technology, precision mechanical engineering, and exceptionally refined analogue output to deliver an immersive musical experience with extraordinary clarity, depth, and emotional presence.
Whether you’re revisiting classic SACDs, CDs, or enjoying high-resolution audio via USB and digital inputs, the D-10X preserves every nuance of your recordings with remarkable accuracy and musicality. Built around Luxman’s advanced LxDTM-i transport system and powered by dual ROHM BD34301EKV DACs with fully balanced output circuitry, this player elevates digital reproduction to an art form.
Key Features & Benefits
Premium SACD/CD Playback
Enjoy high-fidelity playback of SACD and CD formats, including CD-R, CD-RW and MQA-CD, with exceptional jitter control and low distortion.
High-Resolution USB & Digital Inputs
Supports USB audio up to 768 kHz / 32-bit PCM and DSD up to 22.4 MHz, plus coaxial and optical digital inputs for flexible connectivity with high-resolution sources.
Dual Mono DAC Architecture
Equipped with dual ROHM BD34301EKV DAC chips in monaural mode, the D-10X delivers superb dynamic range, broad frequency response, and ultra-low distortion for rich, spacious sound.
Balanced & Unbalanced Outputs
Gold-plated RCA and Neutrik XLR balanced outputs ensure clean, noise-resistant signal delivery to your amplifier, preserving detail and clarity in every genre.
Advanced Disc Transport & Construction
Luxman’s LxDTM-i transport mechanism minimises vibration and resonance, while the robust chassis and shielding ensure interference-free performance.
Sound & Performance
The D-10X delivers a transparent, expansive soundstage with precise timing and incredibly low noise floor. Its balanced output and flagship-level digital conversion ensure clarity, dynamic expression, and harmonic richness across all formats, from SACD’s deep DSD layers to high-resolution PCM files.
Who It’s For
-
Audiophiles seeking reference-grade digital source performance
-
Music lovers with extensive SACD and MQA-CD collections
-
High-end systems demanding top-tier conversion and precision playback
Latest LxDTM-i transport
To minimize even the slightest distortions triggered by vibration and resonance, we upgraded the disc drive, creating the LxDTM-i – LUXMAN original Disc Transport Mechanism (improved). We enclose the drive in 8 mm thick aluminum sides that extend to the front and rear panels, plus a 5 mm thick steel top plate. For added protection, the physical mounting system forms an integrated structure that supports the side frame. Together with an improved disc reading mechanism, the result is playback of an altogether higher order.
Advanced digital processing
The D-10X marks the debut of the world’s finest D/A converter, the MUS-IC™ BD34301EKV from ROHM Semiconductor. Used in dual mono configuration, these converters combine top-flight specs with an impressive suite of silicon-level refinements.MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording.The player includes MQA technology, which enables you to play back MQA-CDs as well as MQA audio files up to 24-bit transferred via USB, optical and coaxial inputs.
ODNF-u balanced analog circuit
Our years of ODNF amplifier development have resulted in ODNF-u – Only Distortion Negative Feedback (ultimate) – which debuts on the D-10X. This fully balanced configuration maximizes error detection accuracy, minimizing distortion. You’ll hear far greater expressive power with enhanced microdynamics across the audio spectrum, especially in the higher frequencies. The stage also achieves a natural and smooth waveform without the conventional output filters. The secret is the tailored, gradual 1st order filter × 3 band processing inside the circuitry. Superb circuitry deserves a strong chassis. To protect the analog signal from changes in ground impedance and magnetic fields, the D-10X incorporates a composite, loop-less chassis. Well shielded, the chassis is also effective at blocking digital noise.
Substantial power supplies
To provide highly abundant, highly stable power, we increased the power transformer capacity by 27% compared to our previous flagship. We also provide independent regulators for each circuit along with formidable filter capacitors for the ultimate stability.
Unique LUXMAN PCB layout
Dielectric effects, unwanted resistance and stray capacitance in printed circuit board patterns can all degrade the audio signal. LUXMAN suppresses these effects with generously thick 100 μm copper foil, gold-plated connections and peel coat removal of the solder mask. In addition, our gently curved wiring pattern delivers smooth signal flow.
Premium selected components
No detail is too small for LUXMAN engineers to consider and refine. The RCA output jacks apply gold plating over an alloy that combines the conductivity of copper with the durability of brass. We use rugged Neutrik XLR terminals for the balanced outputs. In addition, density gradient cast iron insulator feet provide firm support, while diffusing shelf-borne resonance.

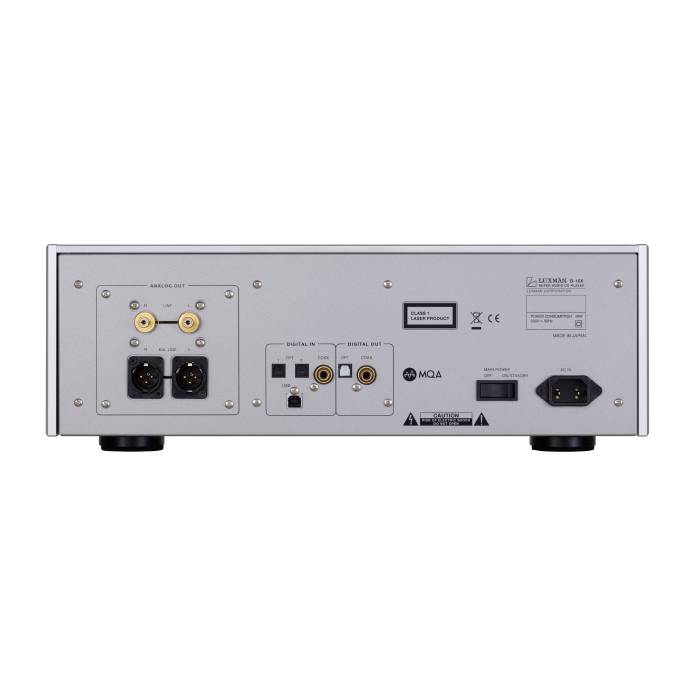

Versatile digital inputs
To complement advanced audio systems, we provide one coaxial and two optical inputs, plus a USB input that supports both DSD and PCM. In addition to isochronous transfer, the USB supports four modes of Bulk Pet® transfer that optimize the processor load between the source and the D-10X for improved transparency.
4X zoom display
You select your listening position carefully. The 4X zoom function makes the fluorescent display easy to read from that seat. When playing MQA-CDs and files, a three-color indicator confirms decode status: Studio (blue), Authentic (green) and Renderer (magenta).

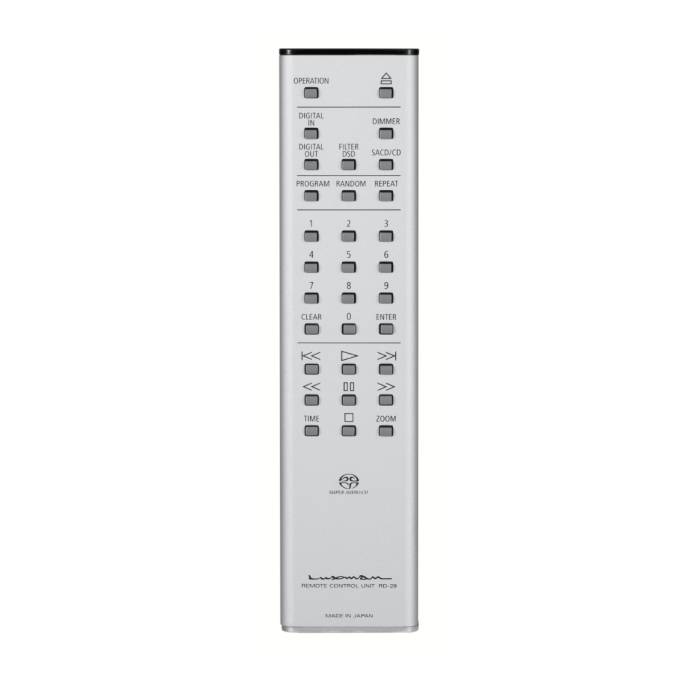

Ergonomic IR remote control
The supplied aluminium remote control has the same blasted white finish as the player's front panel. Without leaving the ideal listening position, you can use the numeric keypad, transport controls and display dimmer.
LUXMAN’s original playback software
For playing back music from a PC, we recommend our LUXMAN Audio Player application. This software supports FLAC, ALAC, WAV, AIFF, MP3, DSF and DSDIFF files. You can download the software for Windows and macOS from the official LUXMAN website.
