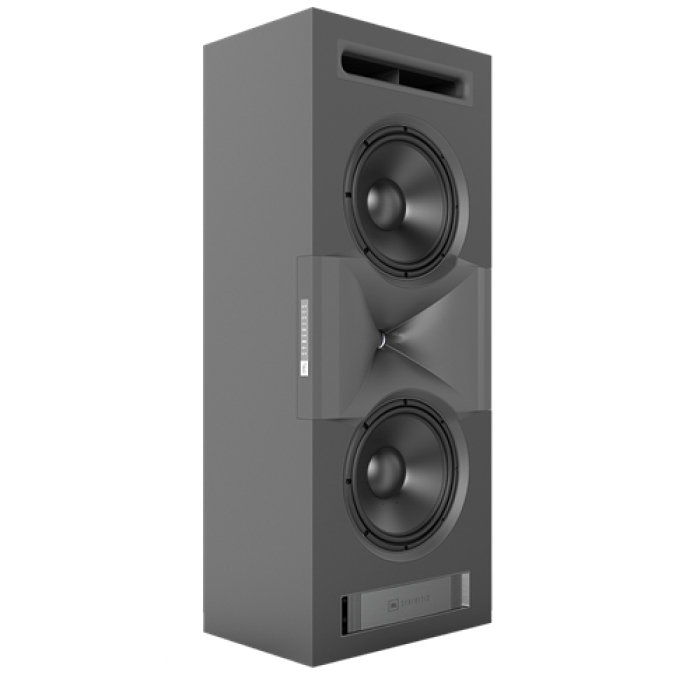

The SCL-1 stands as the pinnacle of the JBL Synthesis SCL loudspeaker series, designed for custom in-room or built-in installations. At its core, it showcases JBL's renowned D2430K dual 3-inch compression driver paired with a large-format High-Definition Imaging (HDI™) horn. Supporting this, dual 12-inch Carbon Cellulose Composite Cone (C4) cast-frame woofers, housed within a patented Complementary Bass Alignment System (CBAS™) enclosure, deliver high-output capability while presenting an easy load to the amplifier. For versatile operation, a front-panel configuration panel enables bi-wiring, bi-amplification, and crossover bypass, facilitating fully active operation with external digital crossovers. The SCL-1 excels in performance behind projection screens or within custom cabinetry, making it an ideal choice for large to extra-large rooms.
JBL SCL-1 Key features-
- 2-way dual 12-inch (300mm) Flagship LCR loudspeaker delivers unparalleled performance in large theater rooms
- Optimized for custom installation behind projection screens and in custom cabinetry
- Timbre matched to all SCL loudspeakers and specially designed to be used with the SSW-1 subwoofer
- Patented D2430K 3-inch (75mm) dual Teonex® annular ring diaphragm, dual voice coil compression driver with dual neodymium motor structures mated to large coverage, High-Definition Imaging (HDITM) horn precision molded out of Sonoglass®
- Dual 12" (300mm) cast-frame Carbon Cellulose Composite Cone (C4) woofers in patented Complementary Bass Alignment System (CBASTM) enclosure design
- Bi-amplifier, bi-wire, and network bypass capability with installer configurable crossover
- Heavily braced black vinyl-clad cabinet built from 1-inch thick MDF with cloth-wrapped, edge-to-edge metal frame grille with magnetic attachment
Experience the pinnacle of audio excellence with the SCL-1 Loudspeaker – where innovation meets sonic perfection.
Discover the JBL Synthesis SCL-1 at BMC Audio Visual, located in Melbourne. Experience the future of home theatre and private
cinemas, and elevate your audio-visual journey to the next level.
