SCL-7

SCL-7 JBL Synthesis

JBL Synthesis

(0 review)

150W 2-Way Dual 5.25-inch (130mm) In-Wall Loudspeaker

This combination does not exist.

Please contact us to purchase this item.

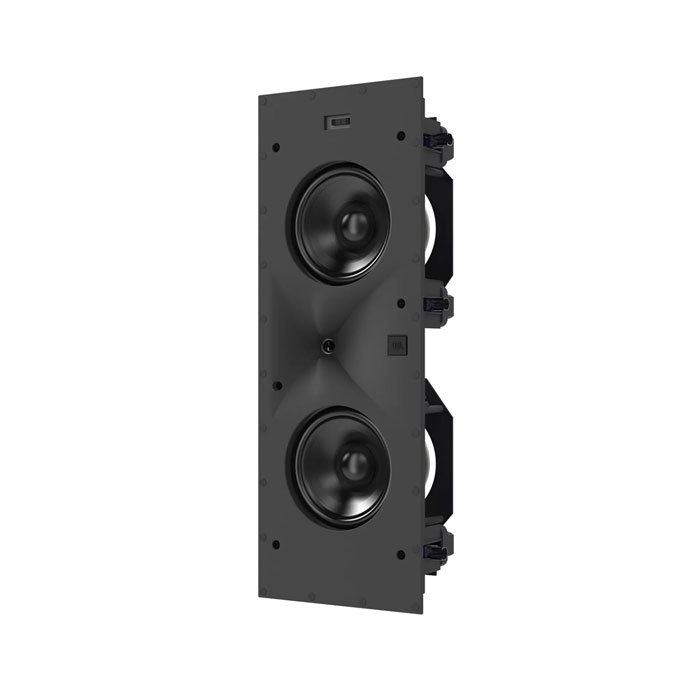

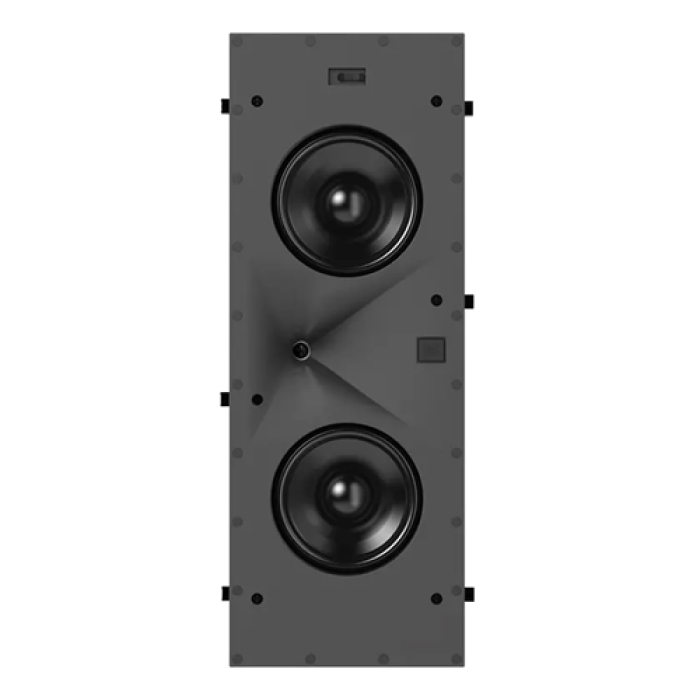

The SCL-7 is the smallest traditional in-wall model in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for use as a width or surround channel or as an LCR in smaller systems. The SCL-7 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn.

Introducing the JBL SCL-7: Compact 2-Way In-Wall Loudspeaker

Experience premium audio performance with the JBL SCL-7, the compact yet powerful addition to the JBL Synthesis Custom Loudspeaker (SCL) series. Designed for versatility, the SCL-7 serves as an ideal width or surround channel, or as an LCR in smaller systems. Featuring JBL’s patented 2410H-2 1-inch (25mm) compression driver paired with an offset High Definition Imaging (HDI™) horn, the SCL-7 ensures exceptional high-frequency clarity. Integrated with two 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers, meticulously engineered into a precision molded baffle assembly, this speaker delivers remarkably smooth and consistent performance even up to 45 degrees off-axis from the listening position.

Key Features

Patented 2410H-2 1-Inch (25mm) Compression Driver: Provides pristine high-frequency reproduction for unparalleled clarity.
Patented High-Definition Imaging Horn Geometry: Enhances imaging and soundstage, creating an immersive audio experience.
Dual 5.25-Inch (130mm) Cast-Frame Advanced Aluminum Matrix Cone Woofers: Ensures detailed and dynamic low-frequency response for enriched audio immersion.
Gold-Plated Spring-Loaded Binding Post Input Terminals: Guarantees secure and reliable connections for enhanced audio performance.

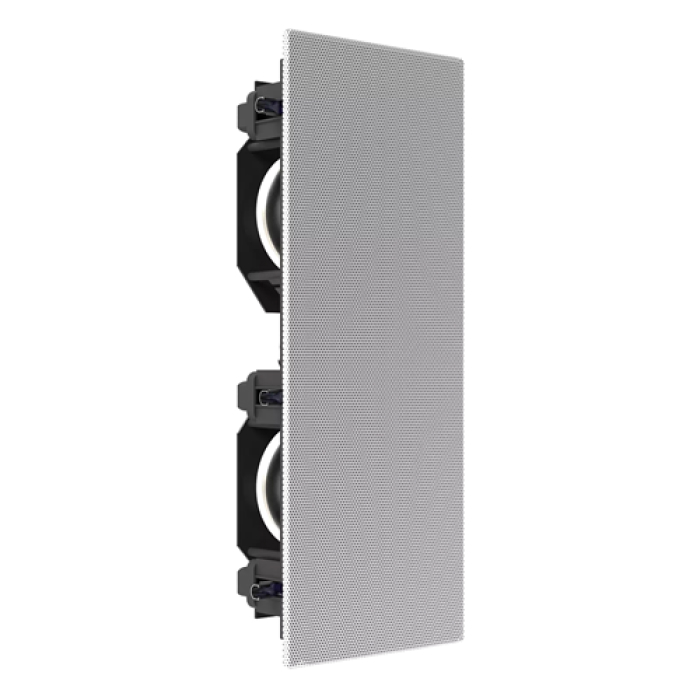

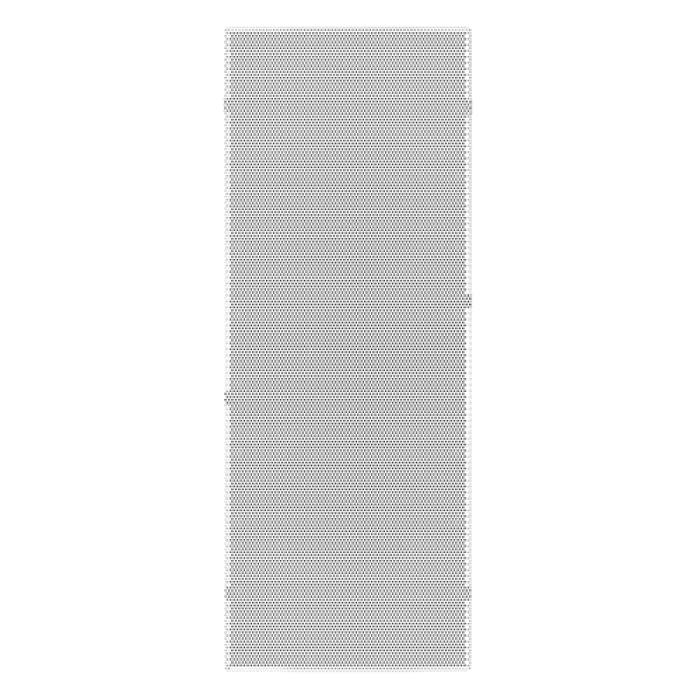

Zero-Bezel, Magnetically-Attached Paintable Grille: Seamlessly integrates into any decor, offering a sleek and unobtrusive appearance.

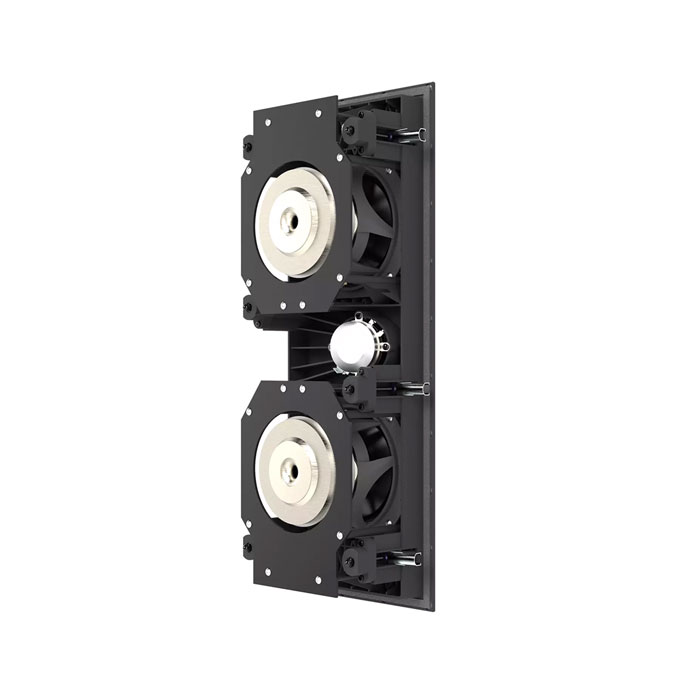

Molded Baffle with Patented CAT Claw Installation Mechanism: Simplifies installation while providing a secure and stable mounting solution.
Advanced Crossover Network: Optimized crossover design ensures smooth integration of drivers for balanced sound reproduction.

Acoustically designed to complement any JBL Synthesis Custom Loudspeakers (SCL series), the SCL-7 serves as an integral part of a complete JBL Synthesis immersive audio solution. Ideal for small to medium rooms, it sets a new standard in compact in-wall loudspeaker technology, delivering uncompromising audio quality and versatility for immersive home theater experiences.

Discover the JBL Synthesis SCL-7 at BMC Audio Visual, located in Melbourne. Experience the future of home theatre and private cinemas, and elevate your audio-visual journey to the next level.

Type	2-Way In-wall loudspeaker
Low Frequency Driver	Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
High Frequency Driver	1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
Recommended Amplifier Power	25 – 150W RMS
Impedance	4 Ohm
Loudspeaker Sensitivity	88 dB/2.83V/1m (2pi anechoic)
Frequency Response	55Hz - 30kHz (-6 dB on-axis), 2pi anechoic
Crossover Frequency	2.0 kHz
High Frequency Coverage Angle (-6 dB)	60° Vertical, 90° Horizontal (Left
Enclosure Type	Open back
Controls	Boundary Proximity Control
Grille Dimensions	7.32” (186 mm) x 19.15” (486 mm)
Product Dimensions (with grille)	7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm)
Cut-out Dimensions	6.18” (157 mm) x 18.03” (458 mm)
Rough-in Bracket	WB52
Mounting Depth	3.64” (93 mm)
Input Type	Gold-plated spring-loaded binding posts
Product Weight	12.6 lbs (5.72 kg)
Shipping Weight	14.6 lbs (6.62 kg)
Shipping Units of Measure	Each
Warranty	5 Years
