Rotel proudly presents the RMB-1585MKII, a 5-channel amplifier that carries forward our legacy of crafting powerful, audiophile-grade amplifiers tailored for multi-channel audio systems.
In line with Rotel's updated MKII design philosophy, the RMB-1585MKII undergoes comprehensive enhancements in both circuitry and components within the power supply and amplifier stages, resulting in ultra-low distortion, high gain amplification, and precise signal isolation. These advancements ensure that multi-channel audio is reproduced with unmatched precision and crystalline clarity.
The Class AB RMB-1585MKII is meticulously built around two substantial, in-house manufactured high-current toroidal transformers. These transformers are designed to deliver a consistent current supply to a set of 8 high-efficiency energy storage capacitors. This innovative power supply architecture ensures the delivery of deep and commanding bass energy, maintaining absolute control over low frequencies, even when driving the most demanding loudspeakers.
To maintain optimum operating temperature, the RMB-1585MKII features four thermostat-controlled, variable-speed ultra-low-noise fans, ensuring efficient thermal management.
One of the unique features of the RMB-1585MKII is a rear panel switch that allows you to select between normal 5-channel mode or Bi-Amp mode. In Bi-Amp mode, Channels 1+2 and Channels 4+5 are configured to receive the same input signal, facilitating straightforward bi-amplification. This setup allows for the use of a separate amplifier channel for the High Frequency (HF) and Low Frequency (LF) drivers of the Left and Right channels, enhancing dynamics and resolution for compatible loudspeakers.

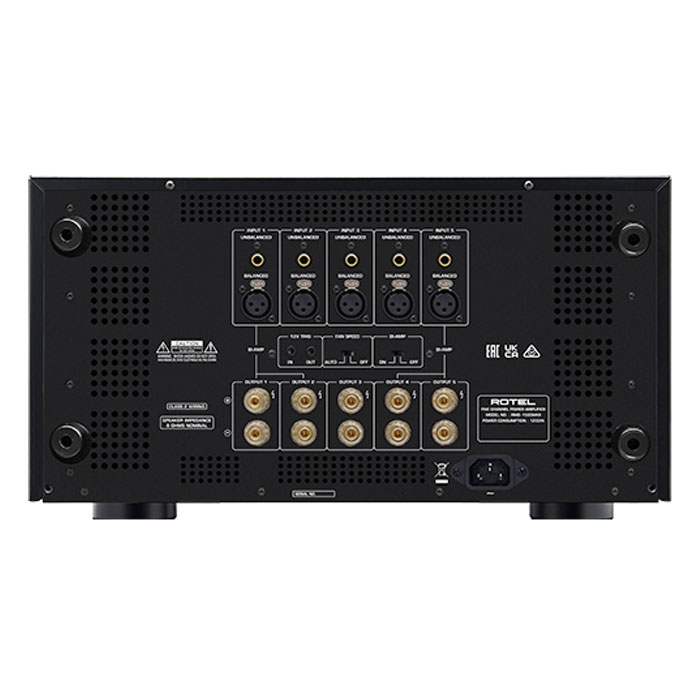

The RMB-1585MKII is purpose-built for Home Theatres and custom installations. It offers convenient auto-switching XLR Balanced and RCA inputs, ensuring compatibility with any AV Processor or Home Theatre receiver preamp output. Additionally, a 12 V trigger input and output simplifies power control. If you require rack mounting, detachable rack mount hardware is available for easy installation in standard 19” equipment racks.

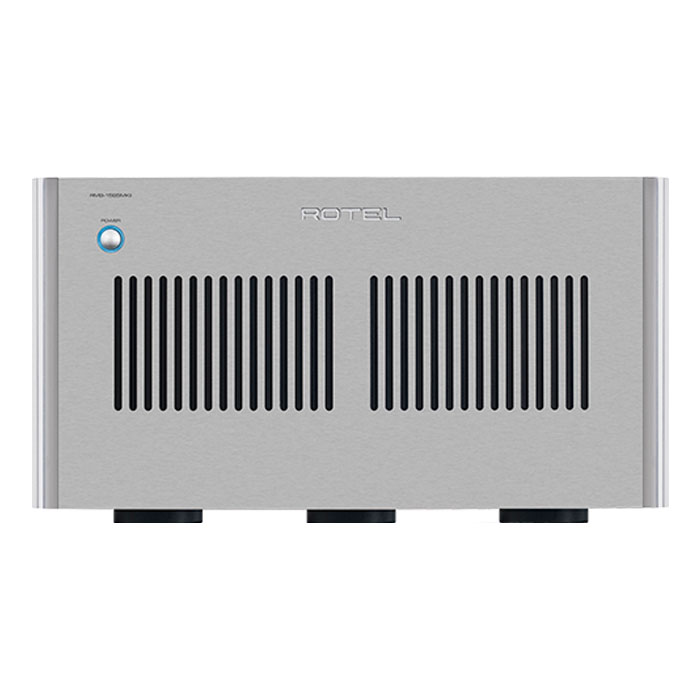

The RMB-1585MKII is available in two elegant finishes, classic black and stylish silver, catering to your aesthetic preferences. Elevate your audio experience with this exceptional amplifier, expertly crafted by Rotel.
