M66

M66 Streaming DAC Pre-Amplifier with BluOS

NAD
https://bmcav.com.au/web/image/product.template/1153/image_1920?unique=e9e424d
(0 review)

Streaming DAC- Preamplifier with BluOS Streamer built-in

$ 9,299.00 $ 9299.0 AUD each $ 9,299.00

$ 9,299.00

    This combination does not exist.

    The Masters M66 BluOS Streaming DAC-Preamplifier is a revolutionary hi-fi component that combines an audiophile-grade DAC with a high-resolution multi-room music streamer. Featuring Dirac Live Room Correction and Dirac Live Bass Control, its elegant design and vibrant 7″ touchscreen exudes quality and class. Pair it with NAD’s M23 power amplifier for a stunning system that excels technologically, sonically, and visually.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    NAD M66 Preamplifier EISA Award

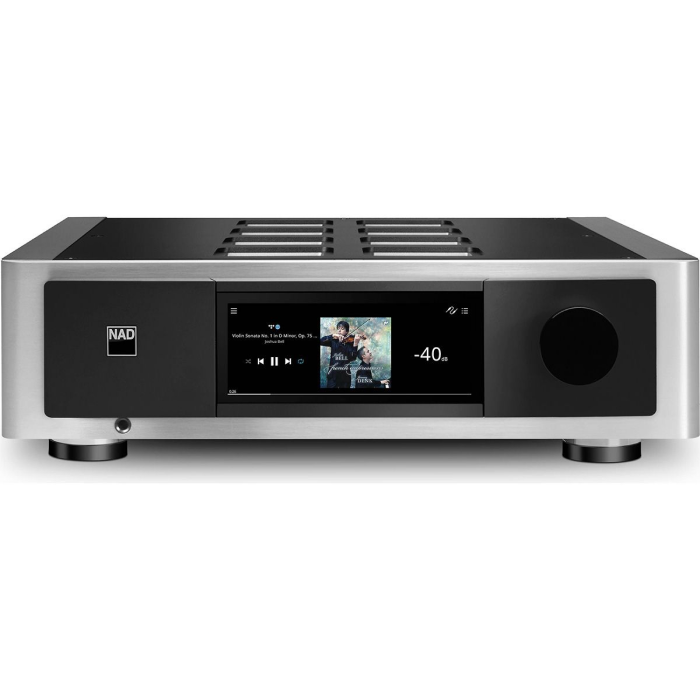

    NAD Masters M66 BluOS Streaming DAC-Preamplifier

    The Masters M66 BluOS streaming DAC-preamplifier by NAD not only represents the pinnacle of the brand's preamplifier offerings but also introduces a new class of high-fidelity standalone components. Boasting a diverse set of inputs, including MM/MC phono and HDMI eARC, the M66 integrates an audiophile-grade DAC and a high-resolution multi-room music streamer.

    Key Features & Specifications:

    • Ethernet and Wi-Fi networking.
    • BluOS network streamer providing access to over 20 streaming services, including lossless and high-resolution audio options.
    • Utilizes flagship ESS Sabre ES9038PRO DAC and ES9822PRO ADC chips.
    • Innovative Dynamic Digital Headroom (DDH) circuit eliminates digital inter-sample peak clipping distortion.
    • Complete MQA hardware decoding and rendering.
    • Support for Apple AirPlay 2, Spotify Connect, and Tidal Connect.
    • Integration with smart home control systems (Crestron, Control4, ELAN, RTI, URC, etc.).
    • Compatibility with voice control through Amazon Alexa, Google Assistant, and Apple Siri.
    • Dirac Live Room Correction and Dirac Live Bass Control.
    • Four balanced and four unbalanced subwoofer outputs.
    • Ultra-quiet MM/MC phono stage with precise RIAA equalization and infrasonic filter.
    • HDMI port featuring eARC support.
    • Multiple digital and analogue inputs, including optical, coaxial, AES/EBU, RCA, and XLR.
    • Dedicated headphone amplifier with low output impedance and high output voltage.
    • Ultra-precise resistor-ladder digital volume control.
    • 7″ front-panel touchscreen.
    • Elegant aluminum casework.
    • Two MDC2 expansion slots for potential future upgrades.
    • Premium IR remote control included.
      (*Note: All features and details listed are preliminary)


    BluOS Streaming and Control

    The M66 incorporates a high-resolution network streamer based on the acclaimed BluOS multi-room music-management system. Offering access to over 20 streaming services, including lossless and high-resolution audio choices, users can enjoy music with resolutions up to 24-bit/192kHz. The BluOS app facilitates intuitive control through smart devices or computers. Furthermore, the M66 seamlessly integrates with home-control systems and responds to voice commands via Amazon Alexa, Google Assistant, or Apple Siri.

    Precision Room Correction

    Featuring Dirac Live Room Correction and Dirac Live Bass Control, the M66 allows precise calibration for an optimal listening experience. The calibration process involves using a supplied calibrated microphone connected to the USB port, guided by the Dirac Live app on a smart device or computer. This results in compensation for acoustic issues, delivering improved bass response, tonal accuracy, clarity, and focused imaging.

    Technological Advancements

    The M66 incorporates ESS Technology's flagship Sabre DAC and ADC chips, renowned for their wide dynamic range, low noise, and distortion. Notably, NAD introduces the innovative Dynamic Digital Headroom (DDH) circuitry, eliminating digital intersample peak clipping distortion. Activated through the BluOS app, DDH enhances the impact of percussion instruments and refines the overall audio experience.

    Versatile Connectivity

    With a comprehensive array of analogue and digital inputs, the M66 accommodates various source components. Vinyl enthusiasts will appreciate the ultra-quiet MM/MC phono stage with precise RIAA equalization and infrasonic filter. For audio-visual needs, an HDMI eARC port connects to an HDTV. Other options include coaxial and optical S/PDIF inputs, AES/EBU balanced digital input, RCA line-level analogue inputs, and XLR balanced inputs.

    Future-Proof Design

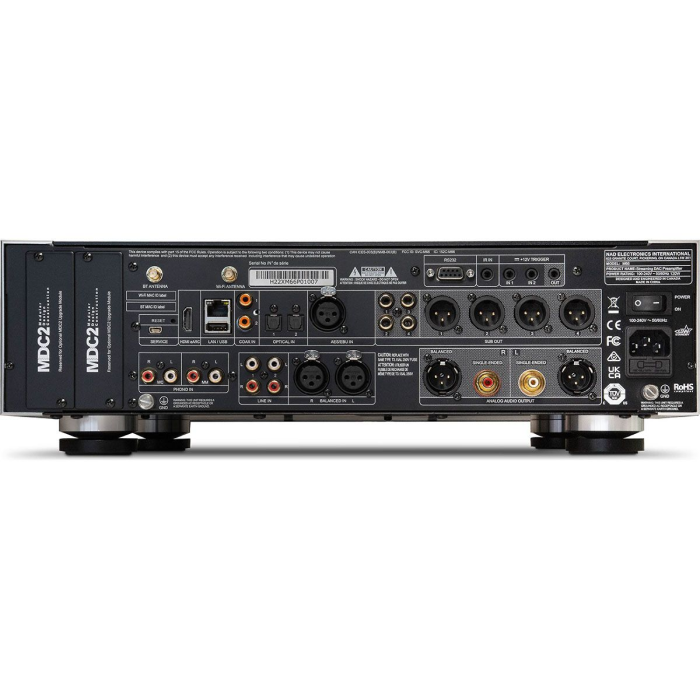

    The rear panel features two MDC2 expansion slots, showcasing NAD's Modular Design Construction future-proofing technology. This enables M66 owners to effortlessly incorporate new capabilities by inserting an MDC2 module into one of the slots as technology evolves.

    Exquisite Design and Build Quality

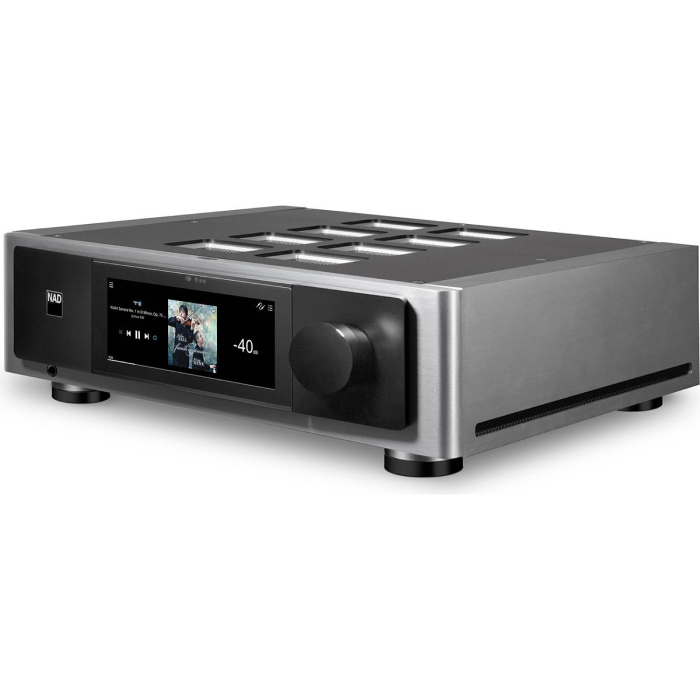

    The M66 exudes pride of ownership with its elegant aluminium casework, a 7″ touchscreen, and a silky-smooth digital volume control. Combining leading-edge technology, unparalleled versatility, and impeccable build quality, the Masters M66 stands as a masterpiece of sound that will maintain its technological leadership for years to come.

    CategorySpecification
    PREAMPLIFIER SPECIFICATIONS
    LINE IN, SINGLE-ENDED / ANALOG AUDIO OUTPUT
    THD (20Hz – 20kHz)<0.001% at 2V out
    Signal-to-Noise Ratio>105dB (IHF; A-weighted, ref. 500mV out, unity gain)
    Channel Separation>116dB (1 kHz)
    >106 dB (10 kHz)
    Input Impedance (R and C)56 kohms + 100 pF
    Maximum Input Signal>5.6Vrms (ref. 0.1% THD)
    >8 Vrms (Analog Bypass)
    Output ImpedanceSource Impedance + 22 Ohm
    Input Sensitivity185mV (ref. 500mV out, Volume maximum)
    Frequency Response±0.2dB (20Hz – 20kHz)
    ±0.2dB (Analog Bypass, 20Hz – 20kHz)
    Maximum Voltage Output - IHF Load>5V (ref. 0.1% THD)
    >10 V (Analog Bypass, ref. 0.1% THD)
    BALANCED IN, BALANCED / ANALOG AUDIO OUTPUT
    THD (20Hz – 20kHz)<0.001% at 2V out
    Signal-to-Noise Ratio>105dB (200 Ohm source; A-weighted, ref. 500mV out)
    Channel Separation>116dB (1 kHz)
    >106 dB (10 kHz)
    Input Impedance (R and C)56 kOhms + 100 pF
    Maximum Input Signal>5.6 Vrms (ref. 1% THD)
    >8 Vrms (Analog Bypass, ref. 1% THD)
    Output ImpedanceSource Impedance + 22 Ohms
    Input Sensitivity90mV (ref. 500 mV out, Volume maximum)
    Frequency Response±0.2 dB (20 Hz – 20 kHz)
    ±0.2 dB (Analog Bypass, 20 Hz – 80 kHz)
    Maximum Voltage Output - IHF Load>10 V (ref. 0.1 % THD)
    >20 V (Analog Bypass, ref. 0.1 % THD)
    DIGITAL SOURCE IN, SINGLE-ENDED / ANALOG AUDIO OUTPUT
    THD (20Hz – 20kHz)<0.0005% at 2V out
    Signal-to-Noise Ratio>108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
    Channel Separation>126dB at (1kHz)
    >115dB (10 kHz)
    Input Sensitivity-20.25 dBFS (ref. 500 mV out (-6 dBV), max Volume)
    Frequency Response±0.2 dB (20 Hz – 20 kHz)
    Maximum Voltage Output - IHF Load>5 V (ref. 0.1 % THD)
    DIGITAL SOURCE IN, BALANCED / ANALOG AUDIO OUTPUT
    THD (20Hz – 20kHz)<0.0005% at 2V out
    Signal-to-Noise Ratio>108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
    Channel Separation>126 dB (1 kHz)
    >115 dB (10 kHz)
    Input Sensitivity-26.25 dBFS (ref. 500 mV out (-6 dBV), max Volume)
    Frequency Response±0.2 dB (20 Hz – 20 kHz)
    Maximum Voltage Output - IHF Load>10 V (ref. 0.1 % THD)
    LINE IN, SINGLE-ENDED / SUBWOOFER OUTPUT / 2 SUBWOOFERS
    THD (20Hz – 20kHz)<0.005% at 2V out
    Signal-to-Noise Ratio>84 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
    Output Impedance480 Ohms
    Maximum Voltage Output - IHF Load>5 V (ref. 0.1% THD)
    BALANCED IN, BALANCED / SUBWOOFER OUTPUT / 2 SUBWOOFERS
    THD (20Hz – 20kHz)<0.005% at 2V out
    Signal-to-Noise Ratio>80B (IHF; A-weighted, ref. 500 mV out, unity gain)
    Output Impedance480 Ohms
    Maximum Voltage Output - IHF Load>10 V (ref. 0.1 % THD)
    PHONO INPUT, SINGLE-ENDED / ANALOG AUDIO OUTPUT (Analog bypass)
    THD (20Hz – 20kHz)MM: <0.008% (ref. 2 V out)
    MC: <0.02% (ref. 2 V out)
    Signal-to-Noise RatioMM: >82dB (A-weighted, ref. 500 mV out)
    MC: >75dB (A-weighted, ref. 500 mV out)
    Input Impedance (R and C)MM: 56 kohms + 100 pF
    MC: 100 ohms + 280 pF
    Input SensitivityMM: 1.7 mV (ref. 500 mV out, Volume maximum)
    MC: 123 μV (ref. 500 mV out, Volume maximum)
    Frequency Response±0.2 dB (20 Hz – 20 kHz)
    Maximum Input Signal at 1kHzMM: >80 mVrms
    MC: >7 mVrms (ref. 0.1 % THD)
    LINE INPUT, HEADPHONE OUT (Analog Bypass)
    THD (20Hz – 20kHz)<0.002% (ref. 1V out)
    Signal-to-Noise Ratio>98 dB (32 ohms loads; A-WTD, ref. 0.5V out, unity gain)
    Frequency Response±0.3 dB (20 Hz – 20 kHz)
    Channel Separation>62 dB at 1kHz
    Output ImpedanceSourceZ + 4.7ohms
    Maximum Input Signal at 1kHzMM: >80 mVrms
    Power Consumption
    Auto Standby ON, Network Standby OFF0.5 W
    Auto Standby ON, Network Standby ON2.0 W
    OFF Mode (Power Switched OFF)0.1 W
    BluOS AUDIO
    Supported Audio File FormatsMP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
    Supported High-Res Audio File FormatsFLAC, MQA, WAV, AIFF, MPEG-4 SLS
    Sampling RateUp to 192 kHz
    Bit Depths16 – 24
    CONNECTION
    Ethernet / LANEthernet RJ45, Gigabit 1000 Mbps
    Wi-Fi Built-InWi-Fi 5 (802.11ac), dual-band
    Bluetooth QualityBluetooth 5.0 aptX HD
    USBType A
    USER INTERFACE
    Supported Operating SystemMicrosoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions
    Supported Hi-Res Audio File FormatsFree BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone, iPod), Android devices, Kindle Fire, Windows, macOS
    Front Panel7-inch full colour touch screen
    Remote ControlSRM1 remote control
    Streaming Cloud ServicesTidal, Qobuz, Deezer, Spotify, Amazon Music HD, SiriusXM, LiveOne, HighResAudio, JUKE, Napster, Pandora, Presto Music
    Free Internet RadioTuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
    GENERAL SPECIFICATIONS
    Supports Bit Rate / Sample RateUp to 24 bit/192 kHz
    Frequency Band2.402G-2.480G
    Maximum Transmit Power (dBm)7 dBm ± 2 dBm
    DIMENSIONS AND WEIGHT
    Dimensions (W x H x D)435 x 133 x 387 mm (17 1/8 x 5 1/4 x 15 15/64 ”)
    Net Weight7.6kg (16.7lbs)
    Shipping Weight16.25 kg (35.8 lbs)
    Shipping Size (W x H x D)569 x 258 x 519 mm (22 13/32 x 20 7/16 x 10 5/32”)
